電圧: | 380ボルト | 原産地: | 中国(本土) | 適用: | 飲料, 機械とハードウェア | ドライブの種類: | 電気 | 銘柄: | winmark | モデル番号: | をcgf | 重量: | 3000キログラム | 自動等級: | 自動 | 包装タイプ: | ボール箱, ボトル | タイプ: | 充填機 | 認証: | ce iso | 提供される売り上げ後のサービス: | 利用できる海外サービスセンター | 包装材料: | プラスチック | 条件: | 新しい | 次元(L*W*H): | 2450*1800*2400 | 力: | 3kw | 認証: | ce iso | 機能: | plcタッチスクリーン制御 | 素材: | ステンレス鋼304 | 適切なボトル: | 200ML-2L | 容量: | 2000BPH-20000BPH | 技術: | 台湾から | 保証: | 1年 | 充填モデル: | によるgavity | 梱包材: | 木材梱包 |
包装
包装: | 通常のパッケージは、 木製のボックス、 特別な要求が、 顧客が持っている場合、 我々はまた、 可能なあなたのためのサービスのためのミネラルウォーターの生産ライン |

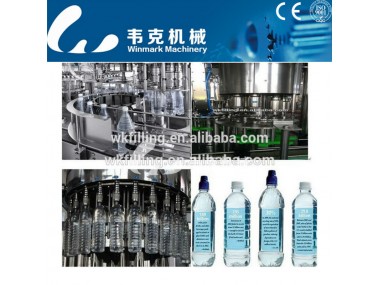

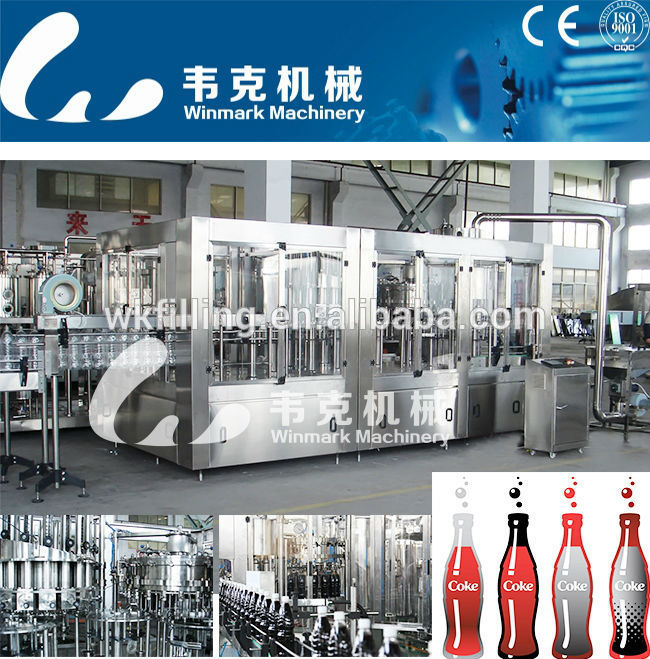

Water Filling Machine / Mineral Water Filling Plant / Pure Water Production Line
Brief Introduction:
1. The machine concept of the CGF series was specifically designed for bottling in a hygienic environment;
2. Thanks to the free-standing transfer starwheels, there are much less exterior surfaces on the fillers than on conventional systems;
3. This innovative design has also the effect of the machine being very easily accessible for maintenance purposes and that it can be expanded at any time without conversion, for example with an additional cap feeder;
4. The OMRON PLC system offers the ideal solution for conductive non-carbonated fill products, as the fill quantity is measured precisely by an inductive flow meter;
5. All filling process steps can be programmed easily and individually – adjusted to the product to be filled and to the container.
6. With all variants of the CGF series for non-carbonated products, the containers are conveyed through the machine by means of neck-handling. This, as well as fill quantity determination via inductive flow meter (IDM) guarantee high flexibility and short change-over times;
7. Depending on the pitch circle, a central or a tubular ring bowl is employed;
8. Product feed pipes connect the product tank with the filling valves. In each connecting pipe, there is an inductive flow meter which measures the quantity of the product flowing through the pipes via the product’s conductivity;
9. The filling process begins after centring of the container and is effected by the free-jet method;
10. In order to be able to cope with the different bottles and products to be filled, one or two filling speeds are available. Non-carbonated beverages are filled pressureless in multi-chamber operation;
11. once the preprogrammed amount of liquid has flown into the container, a flow meter signal will trigger closing of the valve;
12. The fill parameters and programmes are stored in the controller making quick change-overs via touch-screen.
Main Technical Parameters:
Model: | CGF16/12/6 | CGF18/18/6 | CGF24/24/8 | CGF32/32/12 | CGF40/40/12 | CGF48/48/12 |
Production Capacity:500ml(B/h) | 4000 | 6000 | 10000 | 14000 | 17000 | 20000 |
Suitable Bottle Standard:(mm) | 150-300 | 150-340 | 150-340 | 150-340 | 150-340 | 150-340 |
Suitable Cap Standard:(mm) | φ50-φ110 | |||||
Filling Pressure:(Mpa) | 0.2-0.3 | |||||
Filling Model: | Gravity type | |||||
Installed Capacity:(kw) | 3.13 | 3.84 | 3.84 | 5.6 | 6.3 | 7.3 |
Filling Temperature: | Room Temperature | Room Temperature | Room Temperature | Room Temperature | Room Temperature | Room Temperature |
Overall SizeL×W×H(mm) | 2400×1670 | 2470×1970 | 2865×2170 | 3700×2570 | 3800×2950 | 4500×3400 |
Total Weight:(kg) | 2500 | 3000 | 4000 | 5000 | 6000 | 7000 |
Flexibility
Change-over to other products or filling temperatures is done quickly, easily, and it is reproducible
Short change-over times
Very short change-over times made possible via neck-handling parts and changes of the filling volume via touch-screen selection or easy filling programme selection.
Hygienic bottling conditions
Minimised surfaces on the filler’s exterior thanks to freestanding transfer starwheels. Mechanical drive units such as gears and joint shafts have been replaced by closed servo drives.
Easy maintenance
This machine is well accessible so that all maintenance and service jobs can be performed easily.
Future viability
The design of the filler enables retrofitting of another capper or the creation of a Bloc with rinser, blow moulder, or labeller.
1) Water treatment machine
Raw mineral water→ raw water tank→ raw water booster pump→mechanical filter→activated carbon filter→precise filter →UF Components→mineral water tank(→Ozone device/UV device)→Mineral water → Bottle filling machine(lamp-checking+bottle dryer)→ Code printer → Bottle labeling machine →Bottle packing machine → Bottle blow molding machine
